Tilta Nucleus-M II Ultimate Kit (WLC-T06)

Description

Take full wireless control of your lens with the Tilta Nucleus-M II Ultimate Kit (WLC-T06). It's a complete four-channel lens control system for focus, iris, zoom and ND, built for gimbals, Steadicams, handheld rigs and full cinema builds.

Key features

• Four-channel control: run up to four motors (focus, iris, zoom and ND) from the FIZ hand unit.
• Fast, smooth response: 0.02 s response for ultra-smooth focus adjustments, with motors that deliver more torque than the Nucleus M1 and Nano II motors in a compact size.

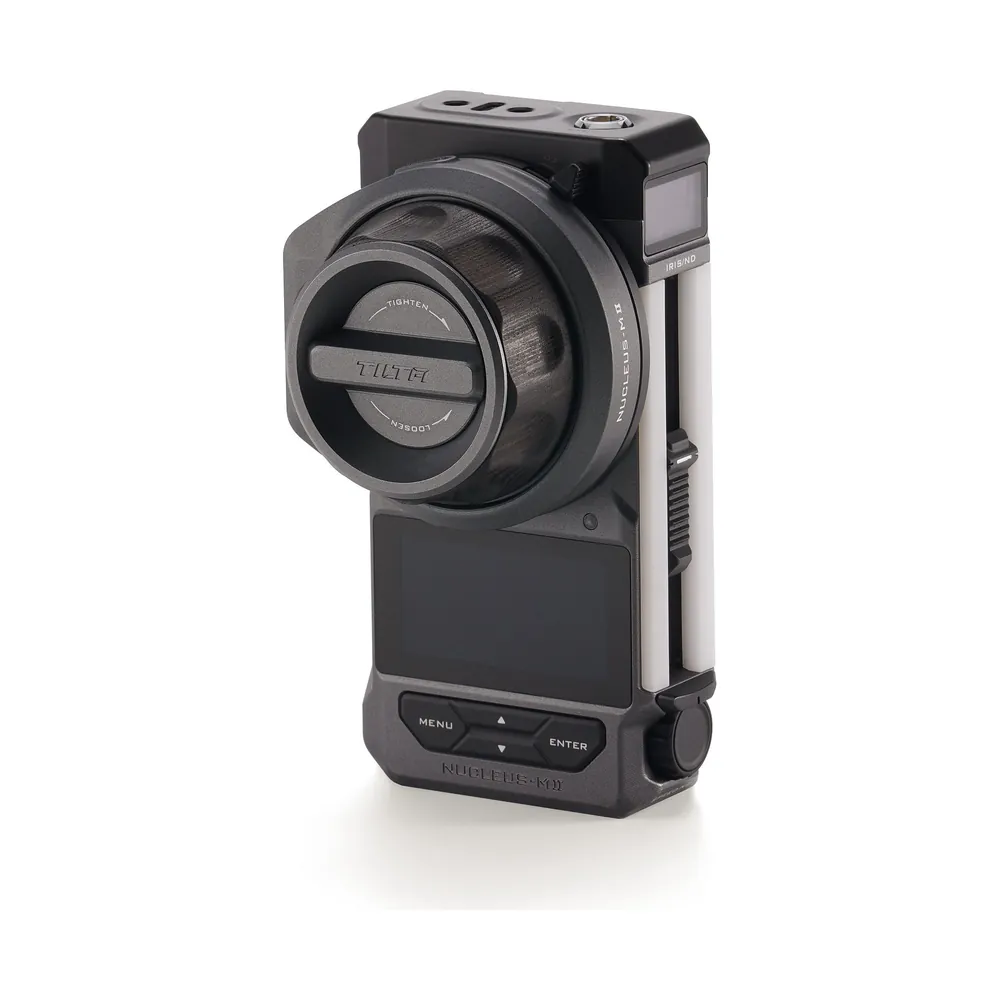

• FIZ hand unit: hand wheel with adjustable damping, a detachable hand wheel you can switch to either side, and an electronic focus marking disk that shows focus information from a normal operating position.
• Lens mapping: create custom lens profiles or load preset data from Tilta's lens library.
• Camera control: adjust settings such as ISO, white balance and run/stop over Bluetooth or a cable connection. Features vary by camera model and firmware.
• Backward compatible: works with the Nucleus M1 wireless system and its accessories, and can also control the Tilta Nano II wireless system, the Mirage motor and the Blackmagic Camera App.
• Gear and rod flexibility: 0.5 and 0.8 MOD motor gears, and 15 mm and 19 mm rod mounts.

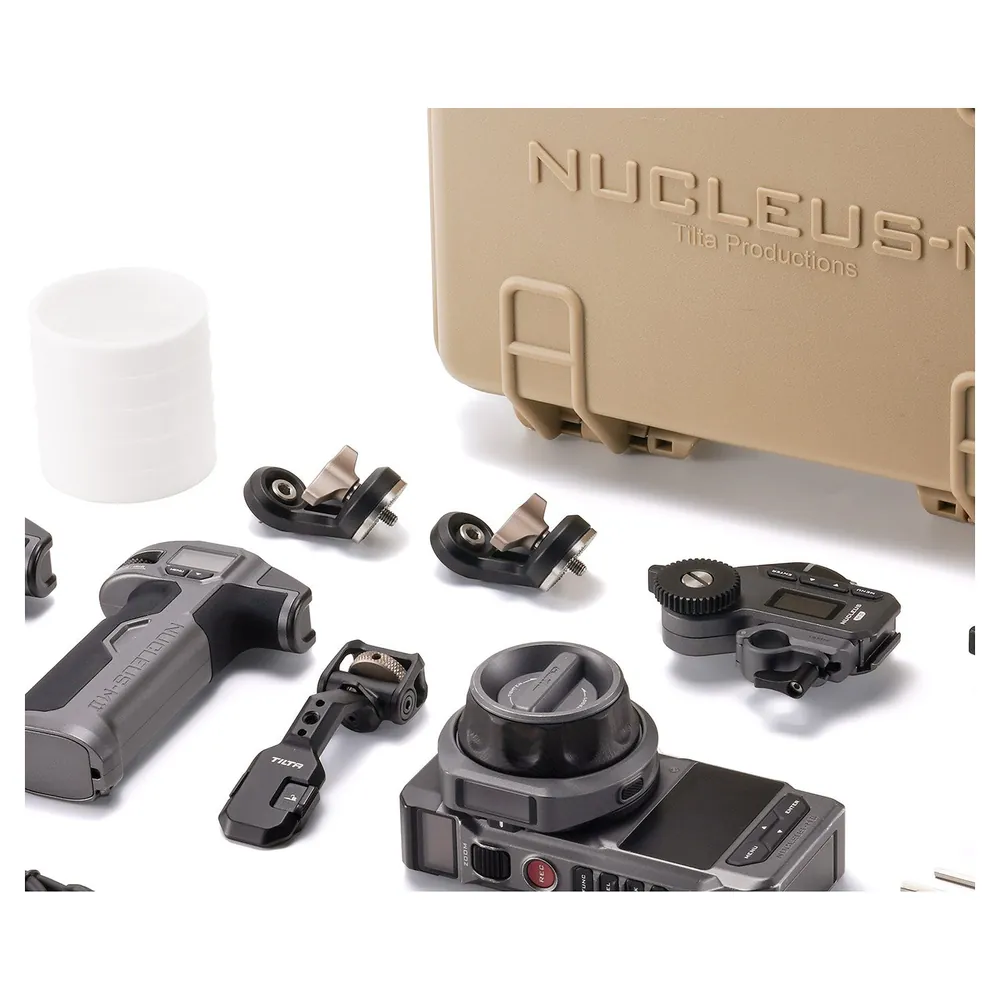

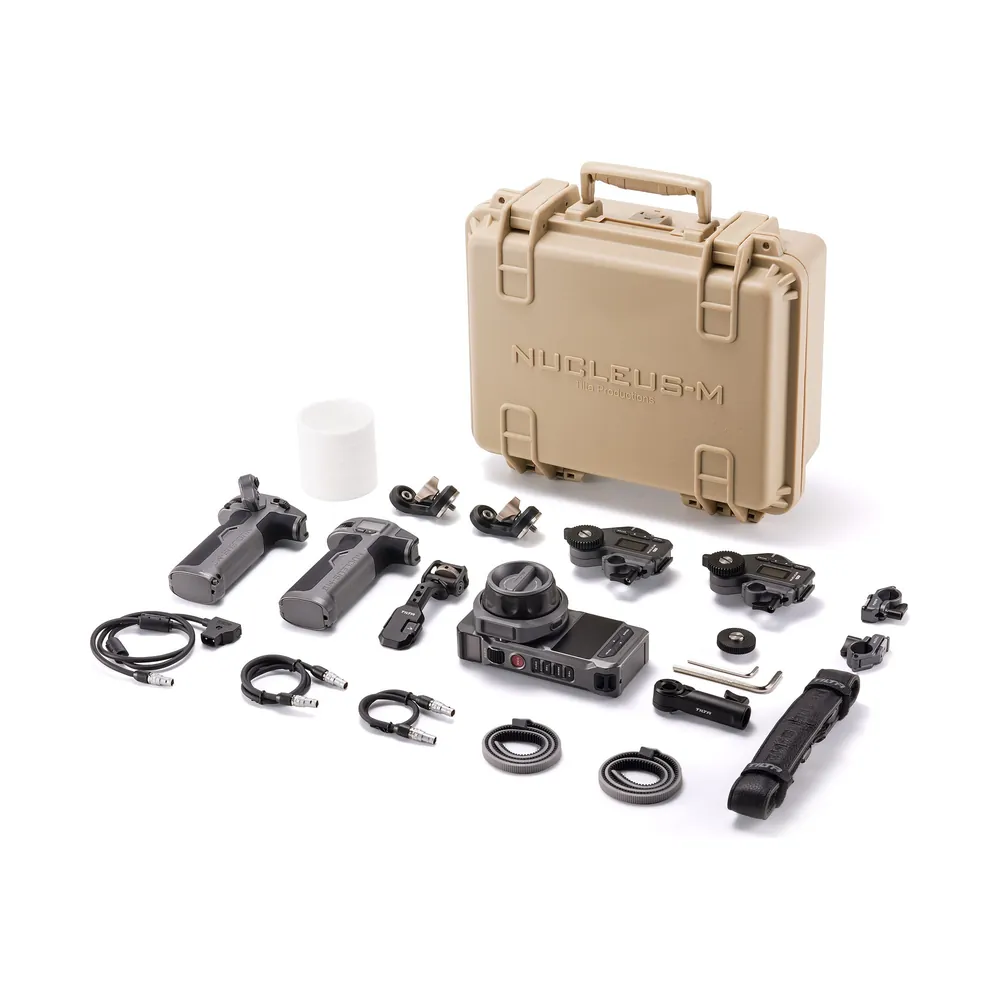

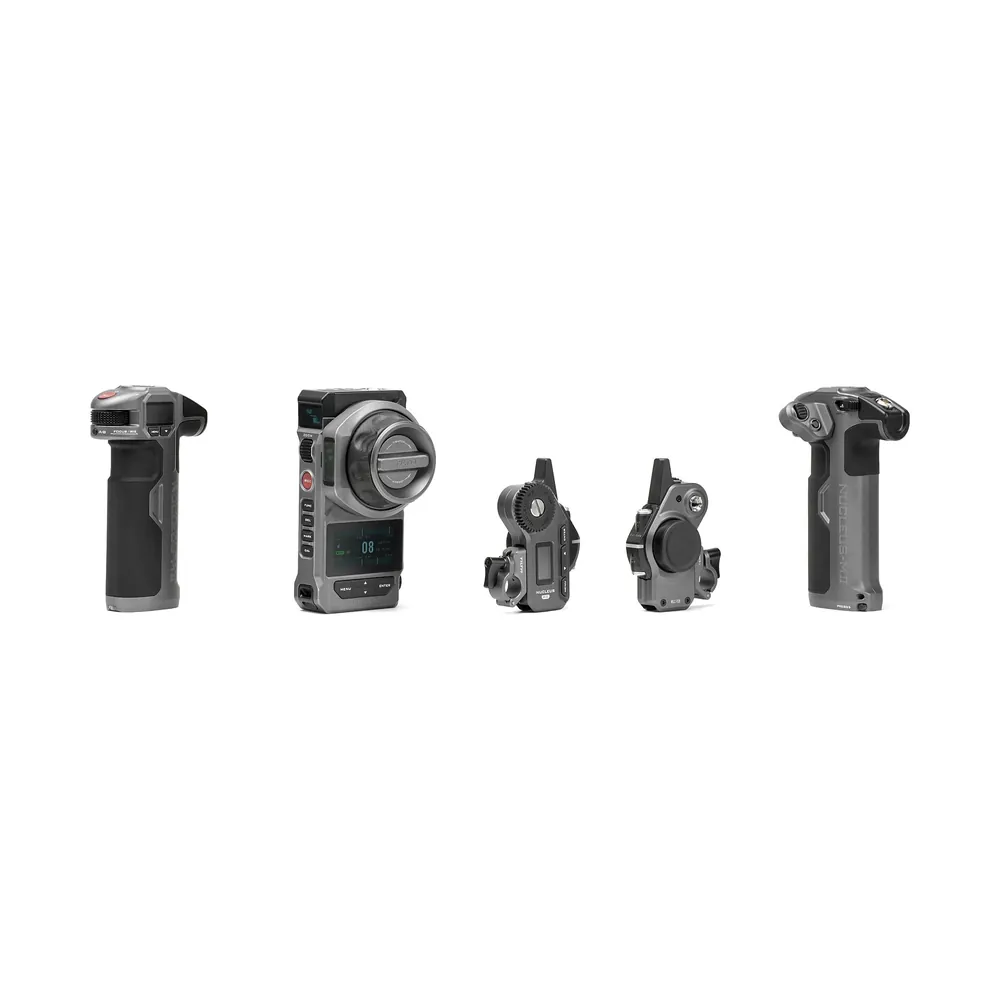

What's in the box

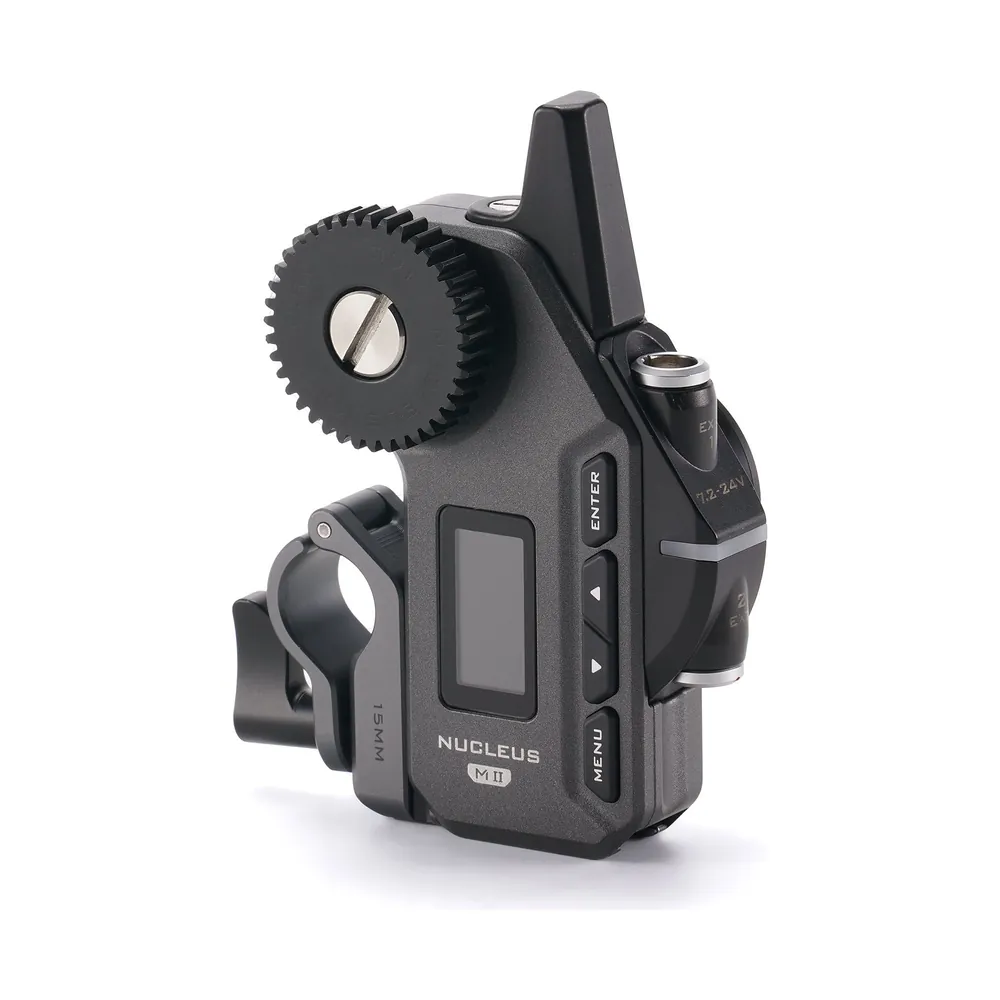

• 2 × Nucleus-M II motor
• 1 × 0.5 MOD motor gear, 2 × 0.8 MOD motor gear
• 2 × motor rod mount (15 mm), 2 × motor rod mount (19 mm)
• 1 × 7-pin to 7-pin cable (30 cm), 1 × 7-pin to 7-pin cable (50 cm), 1 × P-Tap to 7-pin power cable (70 cm)

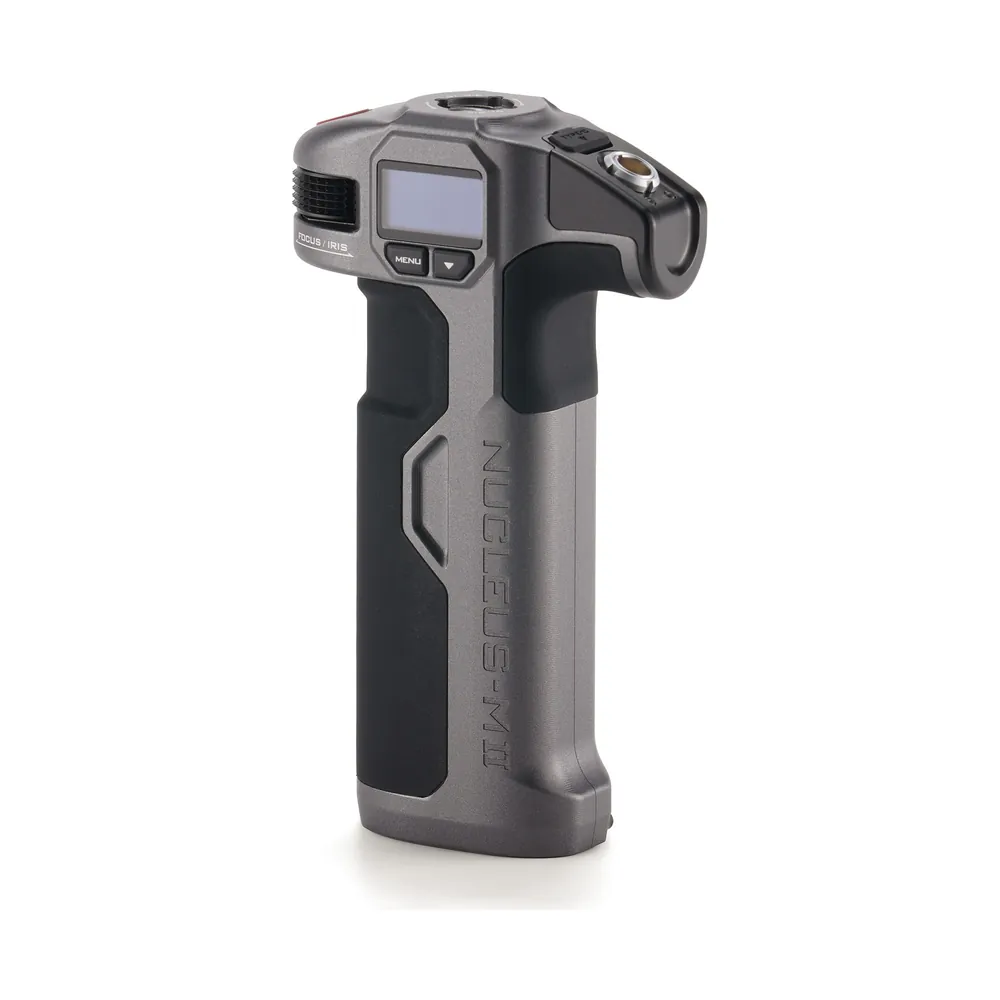

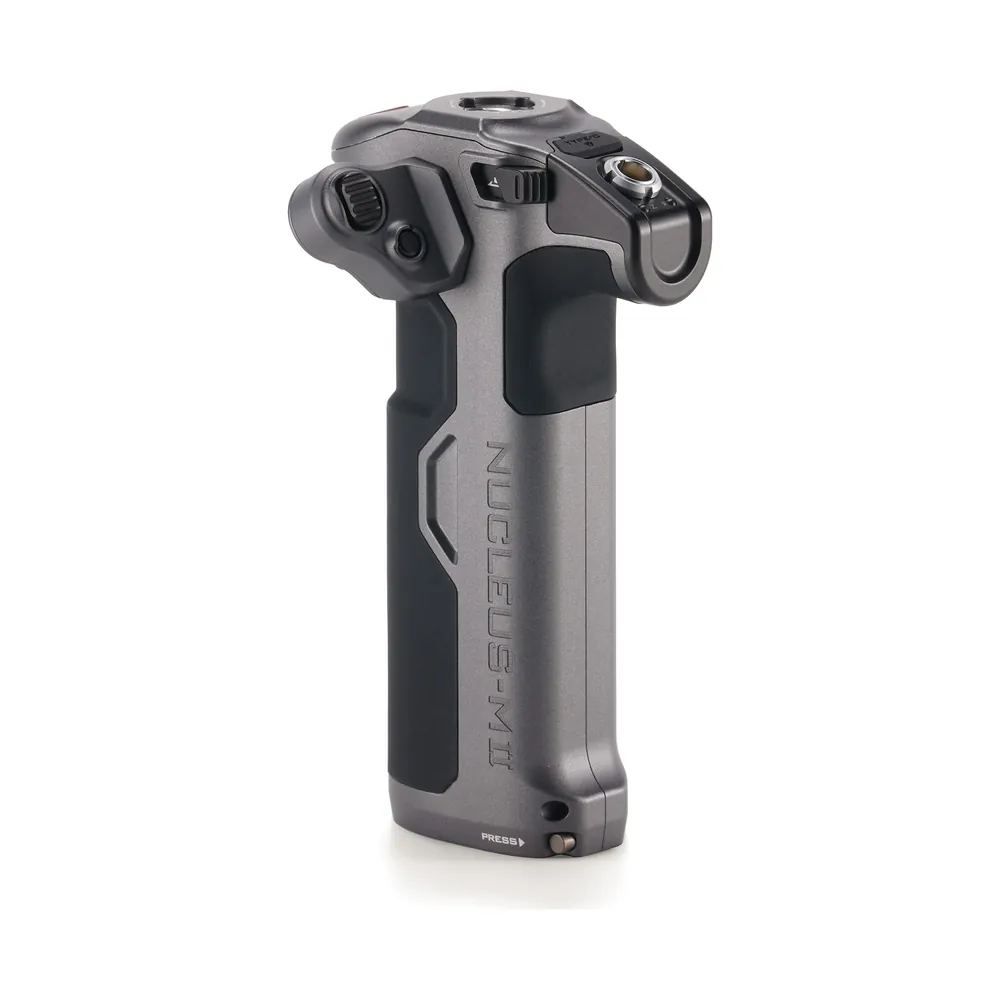

• 1 × left hand grip, 1 × right hand grip, 1 × zoom module for hand grip
• 2 × hand grip to ARRI standard rosette adapter
• 1 × FIZ hand unit, 1 × FIZ hand unit lanyard
• 1 × electronic focus marking disk, 5 × follow focus marking disk
• 1 × monitor mounting bracket for FIZ hand unit, 1 × baby pin adapter for the bracket
• 1 × hard-shell waterproof safety case

Power: the FIZ hand unit and each hand grip take one NP-F550 battery (Sony NP-F type), rated by Tilta at 8 to 12 hours of operation. Batteries are not included.

Kit size and weight (manufacturer data): 35 × 30 × 15 cm, 4.3 kg.

Shipping and warranty

• Available to Australian customers only.
• Ships from our warehouse in France.
• Covered by our shop's own warranty. This is not an Australian dealer or local distributor warranty. Our warranty does not limit your rights under the Australian Consumer Law.

Specifications from Tilta's official product page (tilta.com).
